Product Description:
Electrolytic Tin Plate (ETP) represents a sophisticated packaging material engineered for superior food preservation and container performance. These precision-grade coils feature a cold-rolled low-carbon steel base with a pure tin coating electrolytically applied to both surfaces, creating an ideal barrier against corrosion while maintaining excellent formability. The 0.23mm thickness specification provides optimal balance between material strength and manufacturing efficiency, making it particularly suitable for food cans, aerosol containers, and chemical packaging. Available in various tempers from T1 to DR9, these coils accommodate diverse forming requirements while ensuring consistent performance. The MR-grade base material guarantees exceptional purity and consistency, meeting stringent international food safety standards. With customizable tin coating weights and surface finishes, these materials offer packaging manufacturers reliable solutions for demanding applications.
Features & Advantages:
Precision 0.23mm thickness for optimal strength-to-weight ratio
Superior corrosion and rust resistance for extended product shelf life
Excellent formability across multiple temper grades (T1-T5, DR7-DR9)
Food-safe certification compliant with global food contact regulations
Customizable tin coating weights from 1.1/1.1 to 5.6/5.6 g/m²
Multiple surface finishes (bright, stone, matte, silver) for varied applications
Consistent dimensional accuracy ensuring manufacturing efficiency
Excellent weldability and solderability for seamless can production
Applications:
Food and beverage cans (tuna, vegetables, fruits, drinks)
Aerosol containers and spray cans
Paint and chemical packaging
Pharmaceutical and industrial containers
Specialty packaging components
Technical Parameters:
| Property | Specifications |
|---|---|
| Material Grade | MR, SPCC Food Grade |
| Thickness Range | 0.15-0.45mm (0.23mm standard) |
| Available Widths | 650-1010mm (customizable) |
| Surface Finish | Bright, Stone, Matte, Silver |
| Tin Coating | 1.1/1.1 to 5.6/5.6 g/m² |
| Temper Grades | T1-T5, DR7-DR9, TH520-TH550 |
| Standards | JIS G3303, DIN, ASTM, GB |

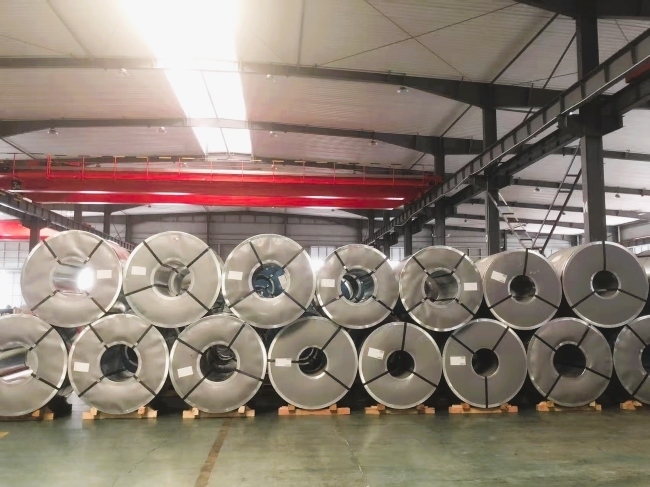

TINPLATE COILS WORKSHOP Show
Tinplate coil wearhouse NO.3
Tinplate coil wearhouse NO.7
Tinplate sheets wearhouse NO.2
Tinplate is widely used for the packaging of products. Such as food cans,
beverage cans, pet cans, closures,general line cans and so on.
Printing workshop Production Process
CERTIFICATE
FAQ:
What makes 0.23mm thickness ideal for food cans?
This thickness provides perfect balance between material strength for protection and formability for manufacturing efficiency.
Are these materials suitable for acidic food products?
Yes, the tin coating provides excellent resistance to acidic contents commonly found in food applications.
Can you provide customized coating weights?
We offer customizable tin coating from 1.1/1.1 to 5.6/5.6 g/m² based on specific application requirements.
What certifications do you maintain?
Our products comply with JIS G3303, DIN, ASTM, and GB international standards with complete documentation.
What is the lead time for production?
Standard orders ship within 30 days after order confirmation and deposit payment.
