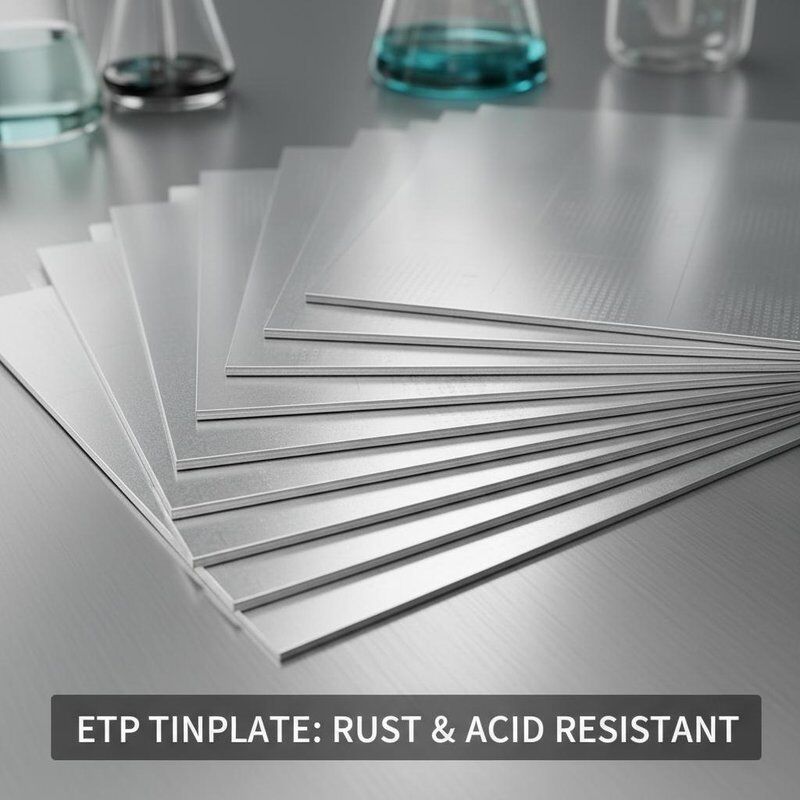

MR Tinplate Tin Coated Sheet offers exceptional rust and acid resistance. This material combines the strength and formability of steel with the corrosion resistance, solderability, and aesthetic appearance of tin, providing excellent corrosion resistance, non-toxicity, high strength, and good ductility.
| Parameter | Specification |
|---|---|
| Product | Tinplate Sheet |
| Standard | ASTM A623, EN 10203, GB2520-2000, JISG3303-2002 and DINEN10202-2001 |
| Material | MR SPCC |
| Thickness | 0.14mm - 0.40mm (tolerance -/+0.01 mm) |
| Width | 600~1050mm (Tolerance: 0~3mm) or as per customers' requirements |
| Cutting Length | 600~1050mm (Tolerance: 0~3mm) or as coils |
| Annealing | BA & CA |
| Temper | T1 T2 T3 T4 T5 DR8 DR9 TH550 TH580 TH620 TH660 |
| Tin Coating | 1.1/1.1 2.0/2.0 2.8/2.8 2.8/5.6 5.6/5.6 8.4/8.4 11.2/11.2 g/㎡ |
| Surface Finish | Bright, Stone, Silver, Matt, Rough stone |
| Coil Diameter | ID 420/508/610mm, OD from 1,000 to 1,250mm |
| Coil Weight | 3~10 MT |
| Package | Seaworthy Standard with wooden pallet, corner protected by sheet or coils according to customer's requirements |
| Applications | Metal packaging for paint, chemical cans, aerosol cans, food can production, batteries, electric cables, and other industries |
Tinplate is applied to various containers including food, beverage, artistic containers, and electric parts. TFS applications benefit from excellent paint adhesion, making it the most suitable material for food cans, crown caps, artistic cans, and general painted containers.
